Automatic Sliding Entrance at Reigate Town Hall
A new thermally broken aluminium bi-parting sliding door set and automation, supplied and installed at Reigate Town Hall in Surrey and tested to EN16005.
Case study
Town hall entrance renewed in Reigate
Reigate Town Hall needed its main entrance renewed — the existing doors, frame and arched head taken out and replaced with a new automatic sliding entrance under the building's glazed canopy. Avanti Doors supplied and installed a thermally broken aluminium bi-parting sliding door set and a matching automatic operator, working within normal hours over two days at a building that stays open to the public. Completed in July 2026.
- Installed
- July 2026
- Location
- Reigate, Surrey
- Work
- Aluminium bi-parting sliding entrance + EN16005 automation
On site

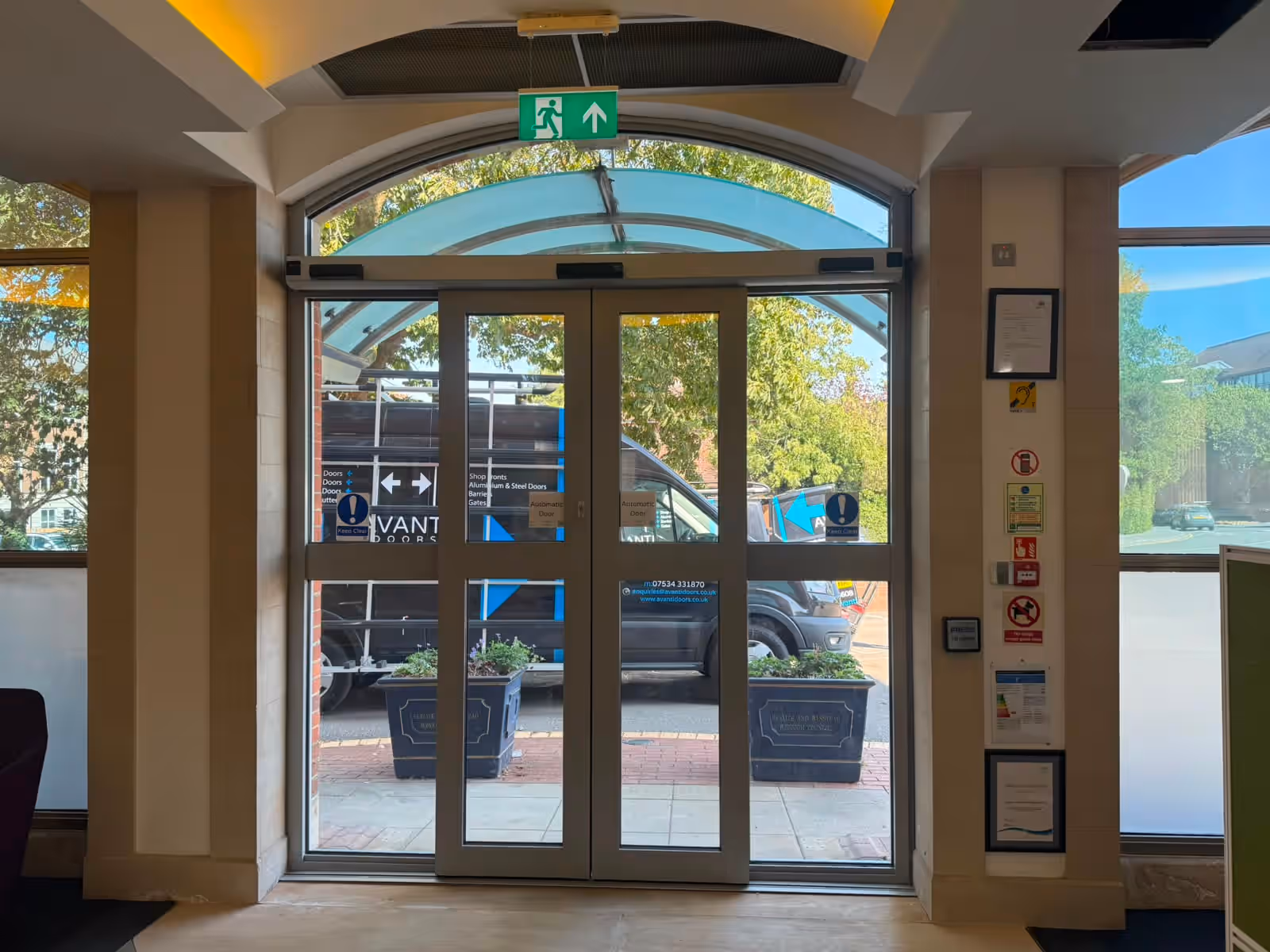

The finished entrance
A walkthrough of the completed doorway — the new bi-parting sliding doors and automation in place at the town hall entrance.
Scope of works
A new aluminium sliding entrance for a public building
What we supplied and installed
- Existing doors, frame and arched head removed and disposed of off site — two engineers on site over two days, within normal working hours
- New aluminium double sliding door set in a RAL 9006 silver finish, thermally broken, with double-glazed screens, a mid-rail and single-glazed pocket doors on a double-ramp threshold
- One hook lock, with the doors aligned, sealed and internals trimmed as needed
- A bi-parting automatic sliding operator — standard track with SSA silver cover, motor, processor, pulley and drive belt, EBU battery back-up and carriage wheels
- Two combi threshold safety sensors, two side-screen safety sensors, a 5-position program switch and electric locking
- Wired, set up and tested to EN16005, adjusted and left in full working order, with all waste removed on completion
Why it matters for the site
- A busy civic entrance renewed with a new thermally broken aluminium sliding door set that keeps the building's arched frontage
- A bi-parting automatic operator with EBU battery back-up, so the entrance keeps working safely even through a power loss
- Dual safety sensing — combi threshold and side-screen — plus electric locking, all set up to EN16005 safety-in-use requirements
- Delivered within normal working hours over two days so the town hall stayed open to the public throughout
How it was done
The installation process
- 1Existing doors, frame and arched head removed and taken off site — two engineers over two days.
- 2New thermally broken aluminium sliding door set and frame installed under the glazed canopy.
- 3Bi-parting automatic operator fitted — track, motor, drive belt, EBU back-up, safety sensors and program switch.
- 4Aligned, sealed, wired and tested to EN16005, then left in full working order with all waste removed.
The outcome
Results & benefits

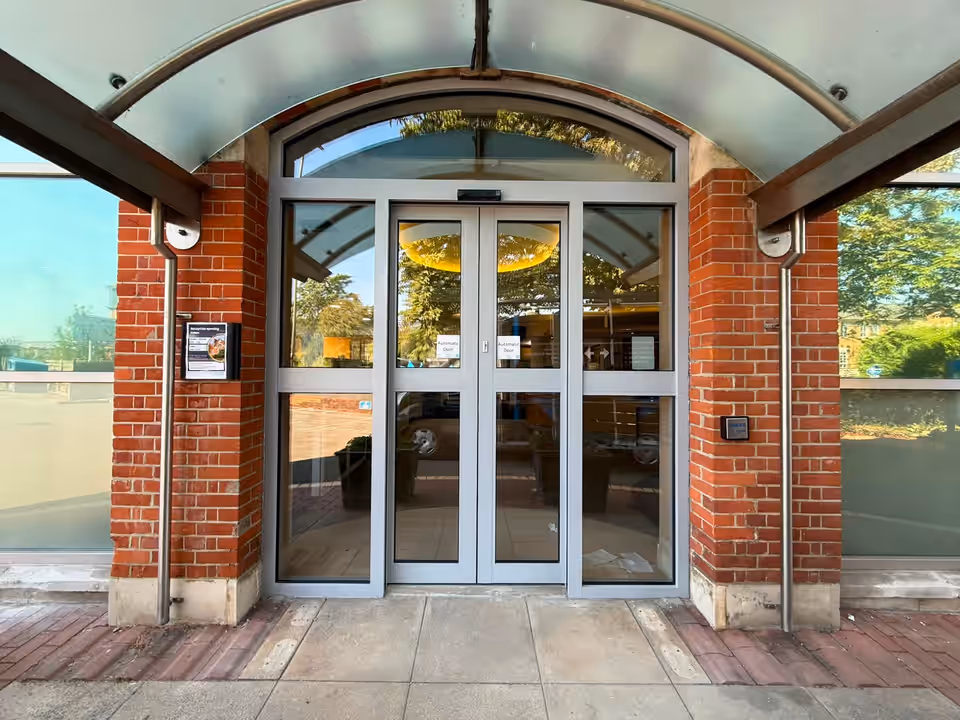

New automatic bi-parting sliding entrance live at Reigate Town Hall.
Thermally broken aluminium doorset with double-glazed screens under the building's arched canopy.
EN16005-tested with EBU battery back-up and dual safety-sensor protection.
Installed in normal working hours over two days at a working civic building.
